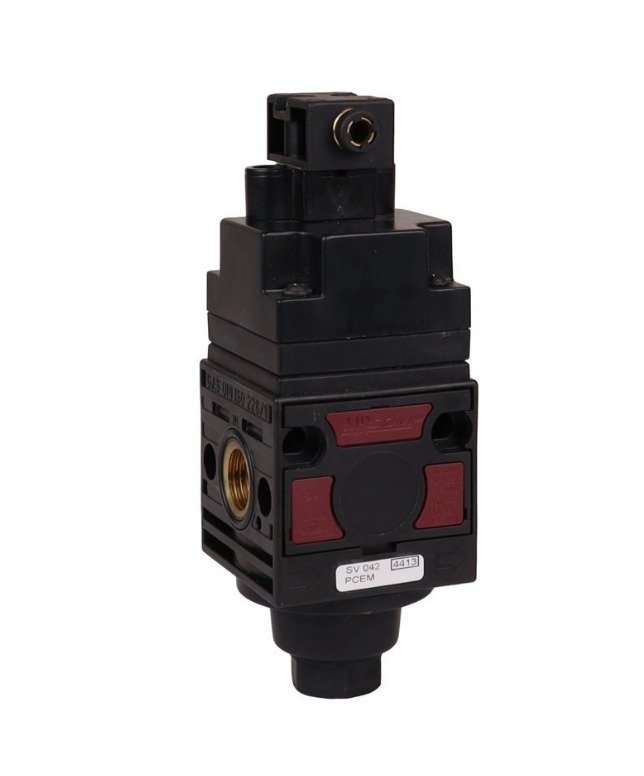

Pneumatic shut-off valves – Line 042
| ORDERING PART NR. COMPLETE UNIT | |
|---|---|
| CODE | REF. |

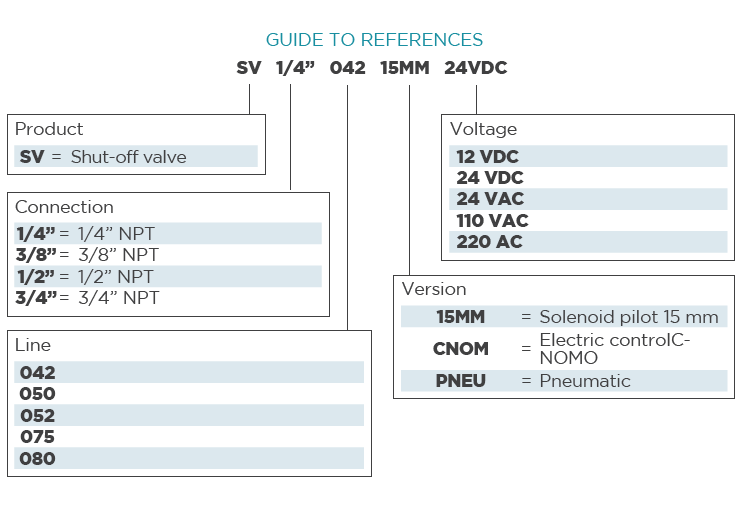

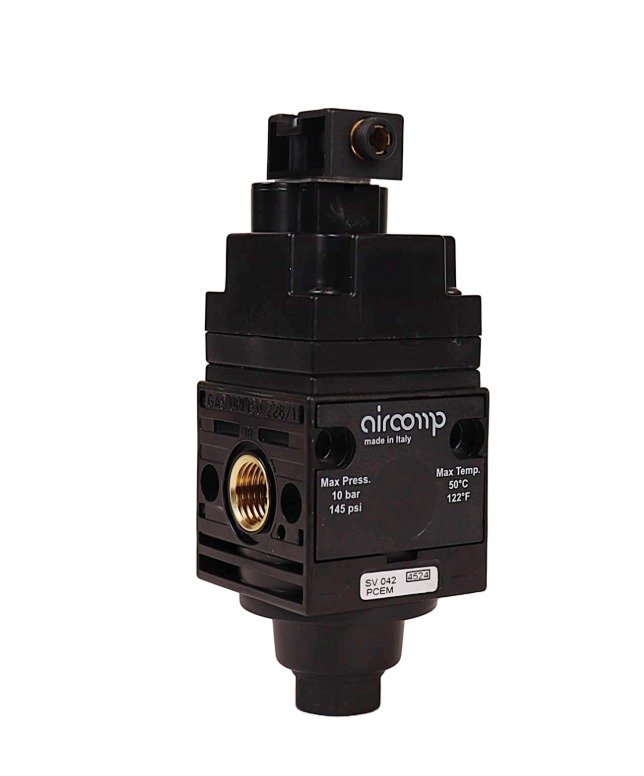

| X42.26.G0902 | SV 1/4 042 PNEUMATIC GR |
GENERAL FEATURES
- The job of the shut-off valve is to close the air supply and exhaust the pressure in the downstream circuit.
- The pneumatic model is often connected to mushrooms actuators present on the control consolle.
- Application: it can be used singularly or, more commnly, assembled in battery set. It is actuated for depressurizing the circuit.
GENERAL TECHNICAL DATA

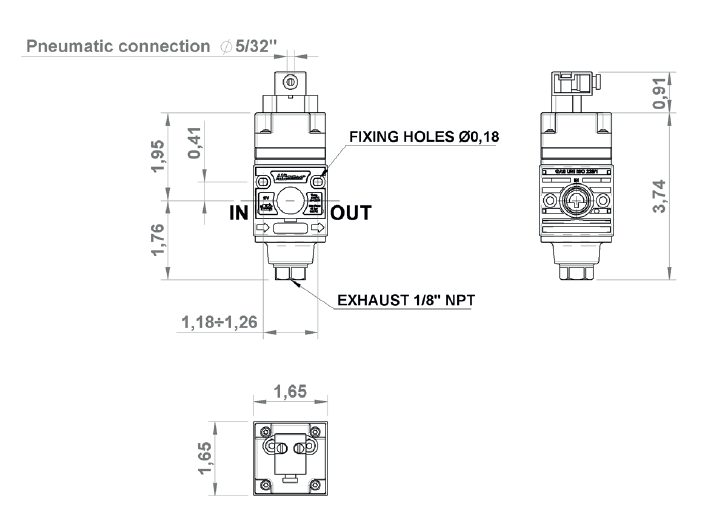

- INLET-OUTLET connections 1/4″ NPT
- Discharge connection 1/8″ NPT
- Maximum inlet pressure 145 PSIG
- Minimum working pressure 45 PSIG
- Reference flow rate (P1= 91 PSIG △P= 14,5 PSIG) 55,4 SCFM
- Exhaust flow rate (at 145 PSIG in open air) 35 SCFM
- Working temperature (at 145 PSIG) 23 – 122° F
- Max Torque G1/4” IN-OUT 221 in lb
- Pneumatic connection push-in fitting D. 4mm (5/32″)
- Weight 0,20 lb
Below 37°F the air of the circuit must be free from humidity
