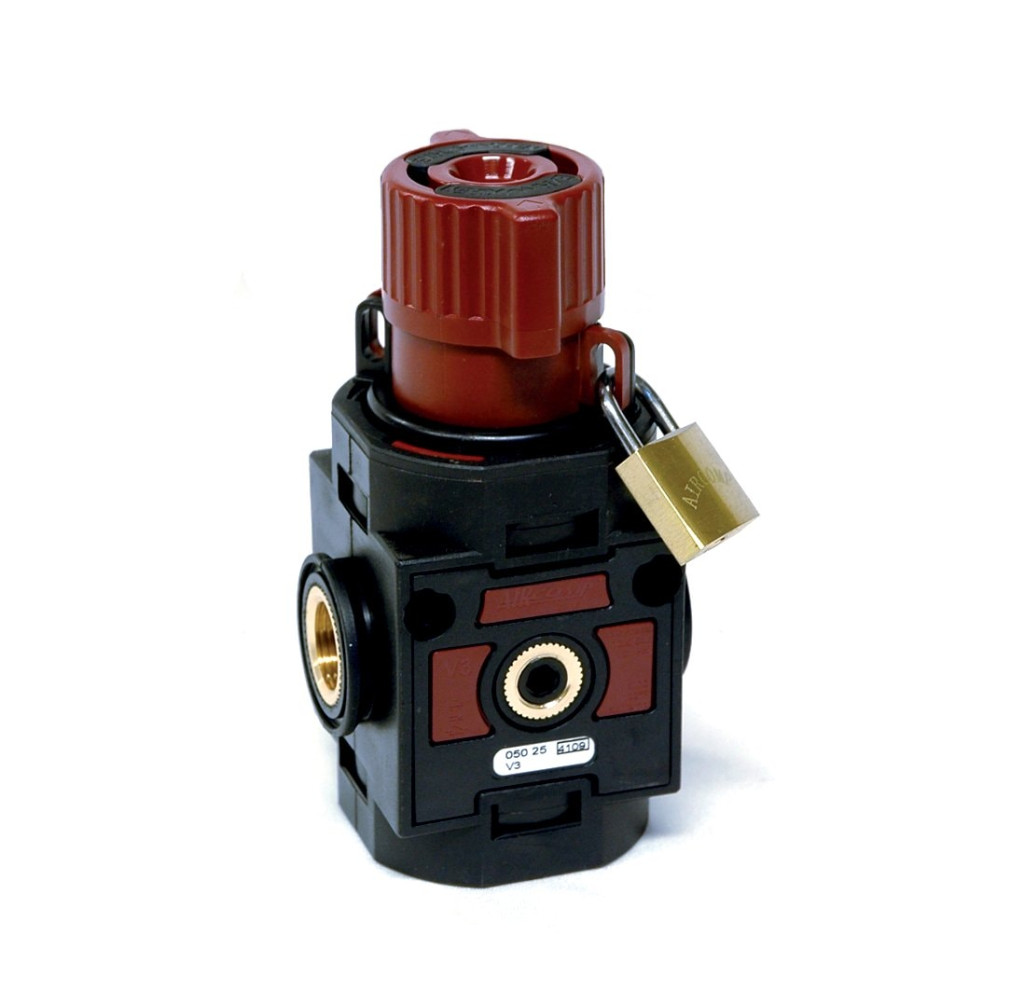

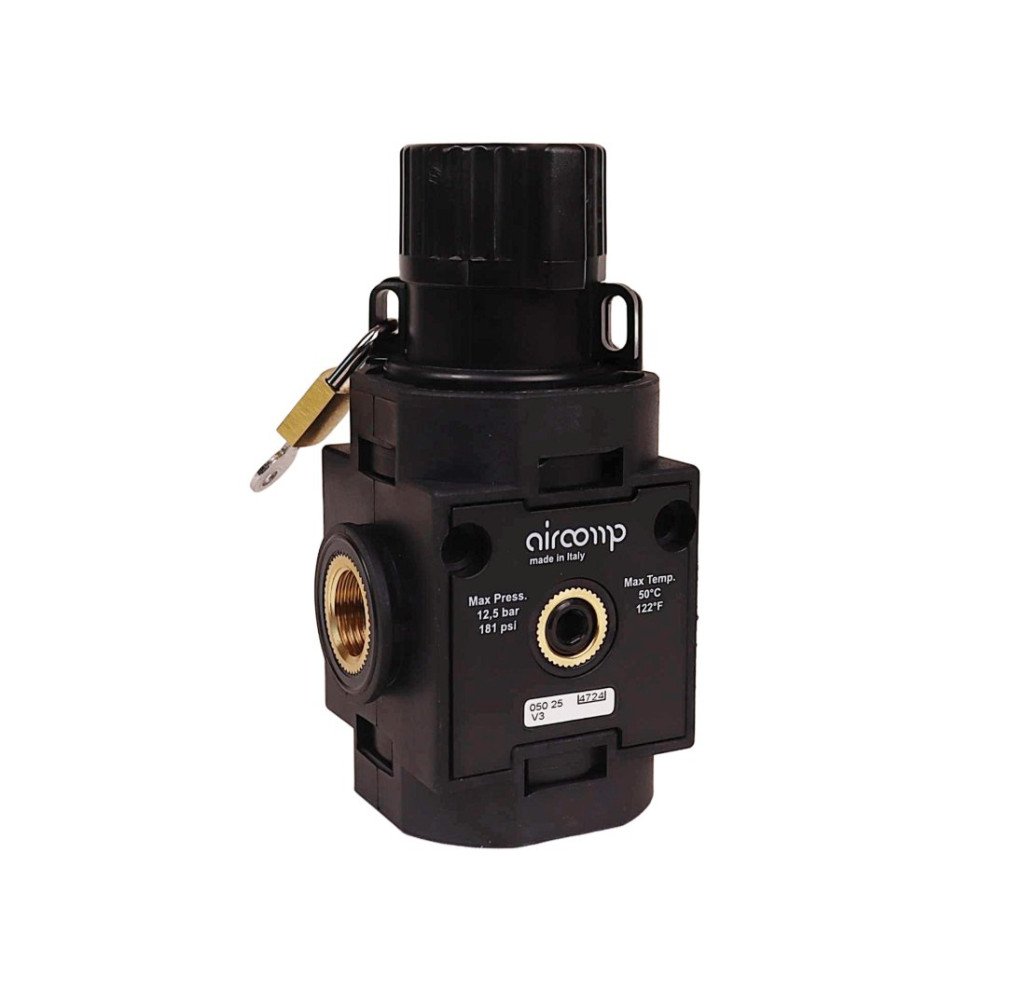

3 way valve- Line 050

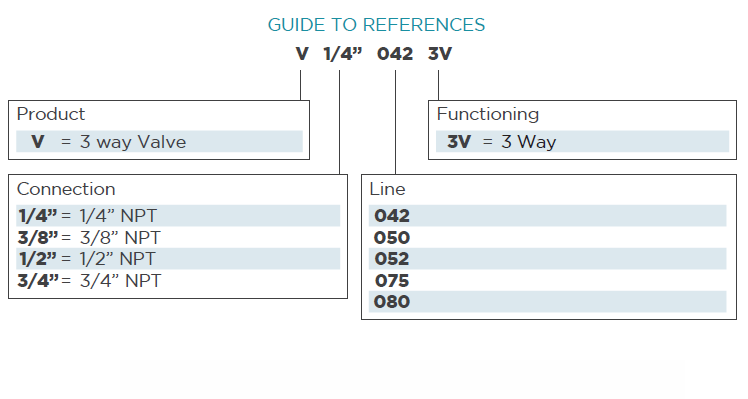

| CODE | REF. |
|---|---|
| X50.25.G0001 | V 3/8 050 V 3 GR |
GENERAL FEATURES
- The job of this 3-way on-off valve is to shut off air supply and exhaust the pressure in the downstream circuit.
- Application: it can be used singularly or, more commonly, assembled in battery set. It is actuated for carrying out maintenance operations with total safety, thus avoiding the system from being accidentally pressurized.
- The valve is equipped with nr. 1 lock and nr. 2 keys.
GENERAL TECHICAL DATA

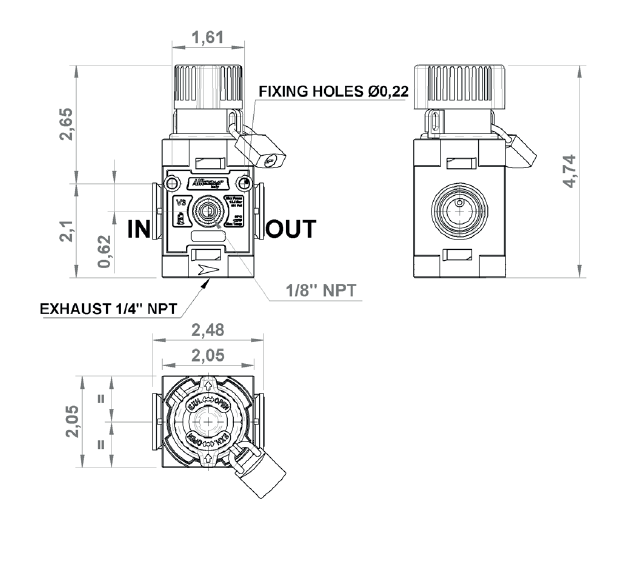

- INLET-OUTLET connections 3/8″ NPT
- Exhaust connections 1/4″ NPT
- Maximum inlet pressure 180 PSIG
- Reference flow rate (P1= 91 PSIG △P= 14,5 PSIG) 91 SCFM
- Exhaust flow rate (at 145 PSIG in open air) 36 SCFM
- Working temperature (at 145 PSIG) 23 – 120° F
- Max torque IN-OUT 3/8” – 531 in lb
- Weight 0,6 lb
Below 37°F the air of the circuit must be free from humidity
