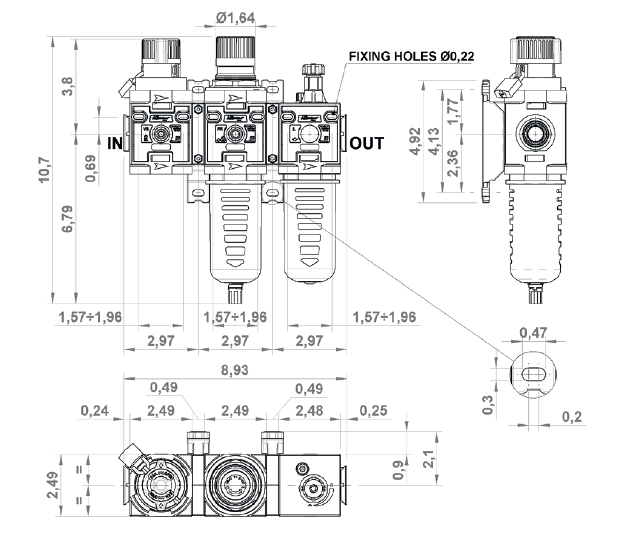

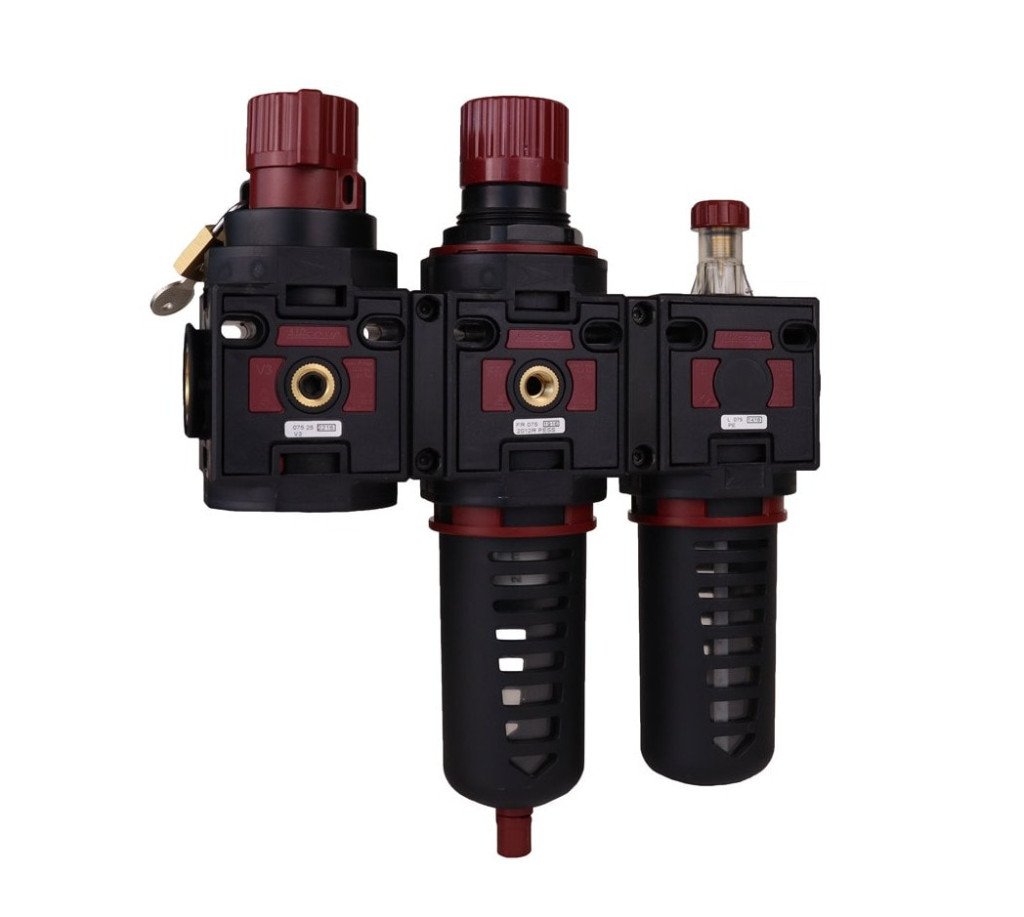

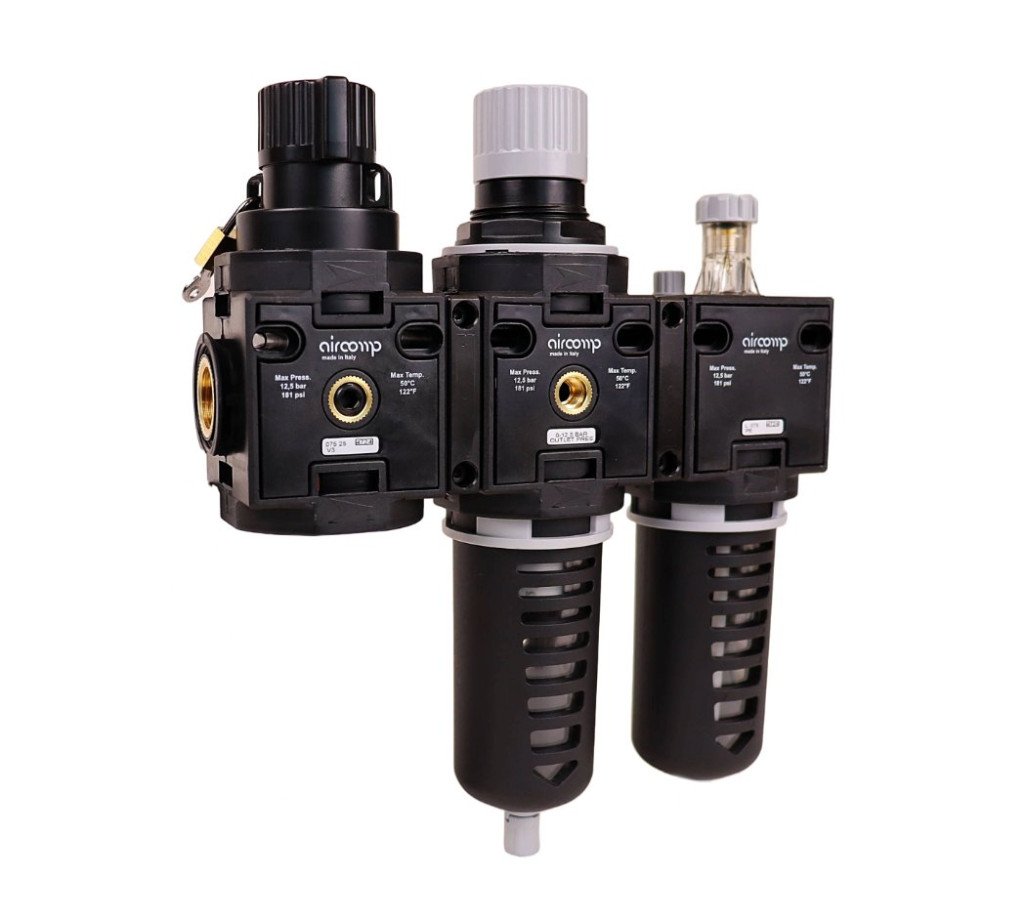

V3+FR+L Unit – Line 075

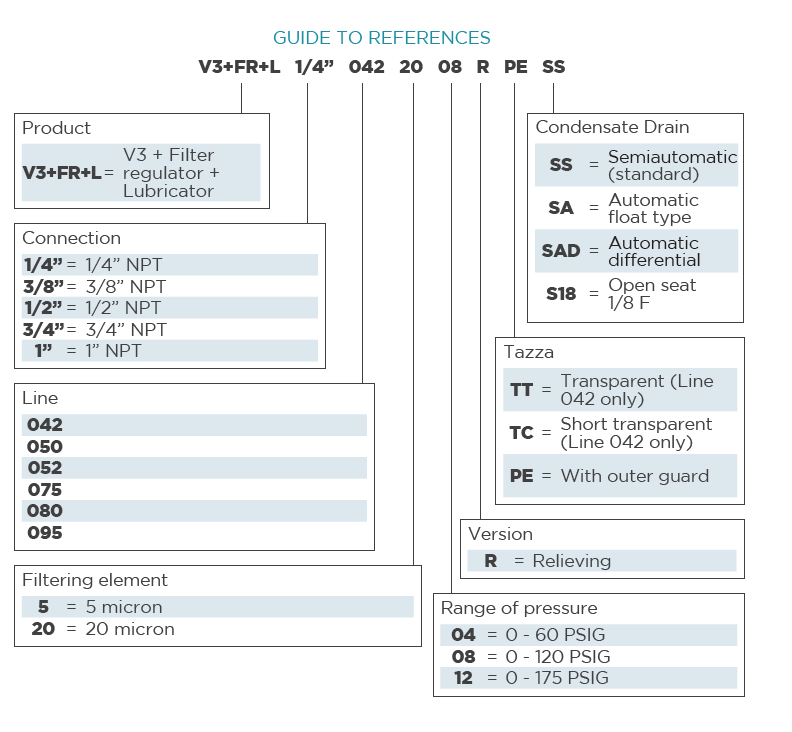

| CODE | REF. |
|---|---|
| X75.36.G0025 | V3+FR+L 1/2” 075 20 08 R PE SS GR |
| X75.36.G0053 | V3+FR+L 1/2” 075 20 12 R PE SS GR |
| X75.36.G0064 | V3+FR+L 1/2” 075 5 04 R PE SS GR |
| X75.36.G0065 | V3+FR+L 1/2” 075 5 08 R PE SS GR |
| X75.36.G0066 | V3+FR+L 1/2” 075 5 12 R PE SS GR |
| X75.36.G0501 | V3+FR+L 1/2” 075 20 08 R PE SS VL GR |
| X75.36.G0505 | V3+FR+L 1/2” 075 20 12 R PE SS VL GR |
| Float type automatic drain version. | |
| X75.36.G0026 | V3+FR+L 1/2” 075 20 08 R PE SA GR |
| X75.36.G0068 | V3+FR+L 1/2” 075 20 12 R PE SA GR |
| "Differential" automatic drain version. | |
| X75.36.G0072 | V3+FR+L 1/2” 075 20 08 R PE SAD GR |
| X75.36.G0073 | V3+FR+L 1/2” 075 20 12 R PE SAD GR |
GENERAL FEATURES
- Unit consisting of 3-way Valve (V3) + Filter regulator (FR) + Lubricator (L).
- It combines the function of shutting-off the system along with the filtration, pressure regulation and lubrication of compressed air for industrial applications.
- Lockable V3 valve for greater safety during maintenance operations.
- It is equipped with semiautomatic drain as standard (SS).
- Available options:float type automatic drain (SA) and differential (SAD), which can discharge to the outside the condensate even when the bowl is pressurized.
GENERAL TECHICAL DATA
- INLET-OUTLET connections 1/2″ NPT
- Pressure range 0-60; 0-120; 0-175 PSIG
- Working pressure 7-180 PSIG
- Auto drain working pressure model SA: 21-145 PSIG; model SAD: 29-175 PSIG
- Filtering degree 5 micron; 20 micron
- Reference flow rate (P1= 91 PSIG △P= 124,5 PSIG) 77 SCFM
- Working temperature (at 145 PSIG) 23 – 122° F
- Max Torque In OUT 1/2″ – 707 in lb
- Max tourque gauge port round 88 in lb
- Weight 2,98 lb
Below 37°F the air of the circuit must be free from humidity
